ZTE Mini GPON ONU ZTE F601 ONT Device
Contact Us
ZXHN F601 is a GPON Optical Network Terminal designed for FTTH scenario. It provides high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. It has a small, smart appearance and green, energy-saving advantage.
Cheap Price in Stock gpon optical module ZTE ONU F601
Brand New English Version Original ZTE ONU ZXHN F601 with 1GE
Product Detail
Color
White
XPON
GPON
Port
1GE
Product Status
stock
Power supply
EU, US, UK, AU
Similar model
HG8310M ,ZTE ZXHN F643
Product Keywords
gpon optical module
Features:
ZXHN F601 is a GPON Optical Network Terminal designed for FTTH scenario. It provides high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. It has a small, smart appearance and green, energy-saving advantage.
Main Function • Supported service: Internet, IPTV Product Includes: • 1 x ZXHN F601 GPON Optical Network Terminal • 1 x 12V 500mA Power Supply • 1 x RJ45 Ethernet Cable
Quality assurance:
1. 12 months warranty
GPON Interface Optical port: 1 x GPON interface (SC/PC or SC/APC) Transmission Distance: 0 ~ 20km Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream User Network Interface 1 x10/100/1000Base-T Half/full duplex; Auto MDI/MDIX; Auto negotiation Optical Module Wavelength: Receiving: 1480~1500 nm Transmitting: 1290~1330 nm Receiving Sensitivity: -28dBm Transmitting Optical Power: 0.5~5dBm Physical Performance Power consumption: <6W Dimensions: 110mm(W) x 90mm(H) x 53mm(D) Working temperature: 0oC ~ 40oC Working humidity: 5% ~ 95% Weight: about 190g Power supply: 12V DC Mounting mode: Desktop/Wall mounting Main Function Supported service: Internet, IPTV GPON: 8 T-CONTs, 32 GEM Ports VLAN: 802.1Q, 802.1P, 802.1ad MAC address table: 256 Multicast: IGMP v1/v2 Snooping Multicast group per user port: 256 QoS: service flow classification based on physical port, Ethernet type; ingress rate limit;
egress shaping Management: local web management, OMCI
Product Feature
High Reliability
It provides full-service access, high bandwidth, high performance, high reliability, easy operation and maintenance, to meet customers evolving requirements, fully protect the investment and enhance the value of fixed network for operators. It has many thoughts in heat dissipation. This designation can ensure the stable running of device. It uses double software versions which are redundant for each other to contribute to the system reliability. To make sure that service would not be interrupted by software bugs, the backup version will be activated while the active software version is broken. Reliable lighteningprotection design with a 4KV power, and a 1.5KV Ethernet interface protect the equipment. Confidential & Proprietary 7
Green Design Green design for ZXHN F601 is showed by many thoughts for saving energy. The main aspects are: While few data frames are switching and ONT is on a relative idle status, the power component will be in dozing mode to save power. The materials comply with RoHS.
Easy Operation and Maintenance ZXHN F601 supports batch-update, fault diagnosis and loop routes checking remotely by OMCI. ZXHN F601 can also be updated and managed in batches through OLT or EMS. ZXHN F601 supports off-line configuration and Batch configuration, Zero touch configuration in field and automatic release and opening of service.
Related Products
Warranty
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Delivery
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Company profile
Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new & ZTE & Cisco & Fiberhome & H3C & Ericsson & Alcatel Lucent & Emerson with Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.we can provide Plenty of Stock, Fast Delivery, Better price, and original guarantee.
Our Services
Most of our technical engineers has considerable experience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.

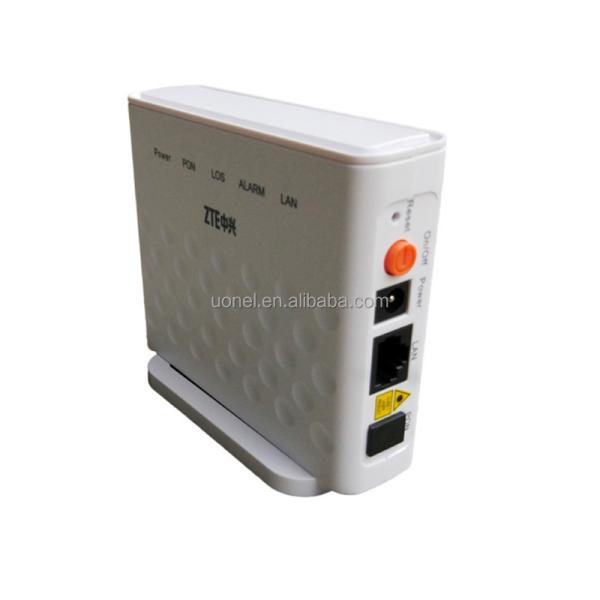

100% Original And Best Price Zte F601 Gpon China Supplier Images
