ZTE ZXA10 F600G F600W 4GE Bridge optical fiber network router GPON ONU F400 F600 F660 F400G

Model Number : ZXA10 F600G ONU

Place of Origin : China

Brand Name : ZTE

Product name : ZXA10 F600 G

Application : FTTH FTTB FTTX FTTC Network Access Equiment

Model Name : ZTE Fiber Optic Moderm

Type : ZTE OUN

Packaging Details : Export carton package

Port : Shenzhen

Supply Ability : 200 Piece/Pieces per Week

Price : Negotiable

Certification : CE FCC RoHS

MOQ : Negotiable

Delivery Time : 7-15 days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

F series ZTE F600G

Fiber Optic Moderm in stock ready

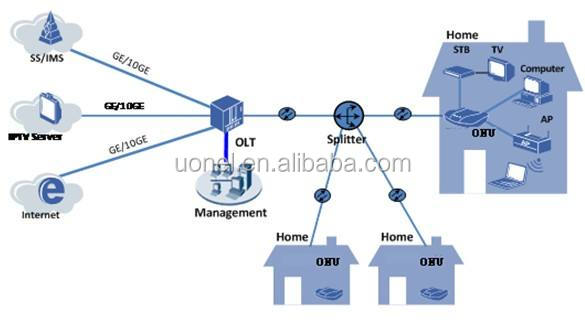

ZXHN F600 is a GPON Optical Network Terminal designed for FTTH scenario. It provides subscribers rich, colorful, individualized, convenient and comfortable services including video (IPTV) and high speed internet access. It has a small, smart appearance and green, energy-saving advantage.

Product Feature

GPON Interface	Optical port: 1 x GPON interface (SC/PC)
	Transmission Distance: 0 ~ 20km
	Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream
User Network Interface	4 x10/100/1000Base-T
User Network Interface	Half/full duplex; Auto MDI/MDIX; Auto negotiation
Optical Module	Receiving: 1480~1500 nm
	Transmitting: 1290~1330 nm
	Receiving Sensitivity: -28dBm
	Transmitting Optical Power: 0.5~5dBm
Main Function	Supported service: Internet, IPTV
	GPON: 8 T-CONTs, 32 GEM Ports
	VLAN: 802.1Q, 802.1P, 802.1ad
	MAC address table: 256
	Multicast: IGMP v1/v2/v3 Snooping
	Multicast group: 256
	QoS: service flow classification based on physical port, Ethernet type; ingress rate limit;egress shaping
	Management: local web management, OMCI
Physical Performance	Power consumption: <6W
	Dimensions: 199mm(W) x 35mm(H) x150mm(D)
	Working temperature: 0℃ ~ 40℃
	Working humidity: 5% ~ 95%
	Weight: about 260g
	Power supply: 12V DC
	Mounting mode: Desktop/Wall mounting
	Supports hidden and coiled fiber
