Huawei Echo Life HG8110 ONU GPON Terminal

Uonel Co.Limtied
Contact Now

Huawei Echo Life HG8110 ONU GPON Terminal

Model Number : HG8110

Place of Origin : China

Brand Name : Huawei

Packaging Details : Export carton package

Port : Shenzhen

Supply Ability : 200 Piece/Pieces per Week

Price : Negotiable

Certification : CE FCC RoHS

MOQ : Negotiable

Delivery Time : 7-15 days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Product Description

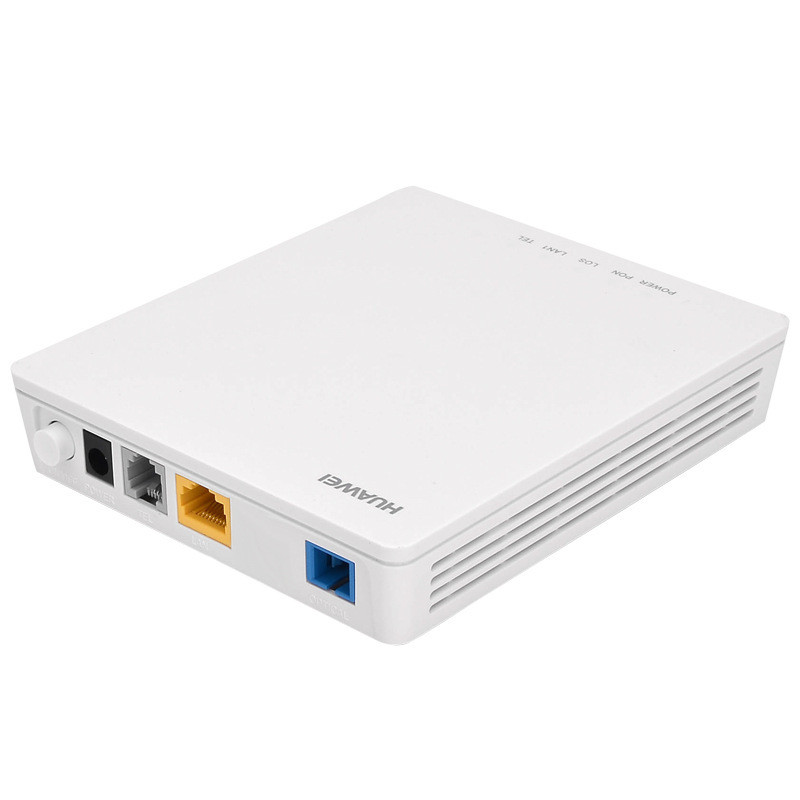

The Echo Life HG8110 is an indoor optical network terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8110 provides one POTS port and one GE/FE auto-adapting Ethernet port. The HG8110 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.


The HG8110 is an indoor optical network terminal (ONT) designed for home users. Its upper shell adopts the natural heat dissipation material, and its optical port adopts the dust-proof design with a rubber plug. The HG8110 is eye-pleasing and energy-efficient. It can be deployed on a workbench or mounted on a wall, meeting users' deployment requirements in different scenarios. By using the gigabit-capable passive optical network(GPON) technology, theHG8110 provides a high-speed data channel through a single optical fiber with an upstream rate of 1.244 Gbit/s and a downstream rate of 2.488 Gbit/s. In this way, you can enjoy quality high-speed data service, voice service, and video service. In addition, the HG8245 and HG8247 provide reliable wireless access service, and convenient storage and file sharing services within a home network.
As an ONT, the HG8110 provides convenient and efficient remote management functions. The HG8010 supports ONT Management and Control Interface (OMCI) protocol and the U2560 (Huawei TR-069 server) and manages all hSome terminals in a unified manner, thus implementing remote fault diagnosis, service provisioning, and performance statistics measurement.

Item
HG8110
Dimensions (length x width x depth)
143 mm x 115 mm x 30 mm
Weight (including the power adapter)
About 250 g
Overall system power supply
11-14 V DC, 1 A
Power adapter input range
100-240 V AC, 50-60 Hz
Maximum power consumption
8W
Temperature range
0°C to +40°C
Humidity range
5%-95% (non-condensing)
Huawei Echo Life HG8110 ONU GPON Terminal
Huawei Echo Life HG8110 ONU GPON Terminal
Huawei Echo Life HG8110 ONU GPON Terminal
Huawei Echo Life HG8110 ONU GPON Terminal
