The EX2300 Multigigabit Ethernet Switch delivers a compact 1 U high-density solution for small network environments with space, power, and budget constraints. The 802.11ac Wave 2 access points connect to the EX2300 Multigigabit switches, thereby providing investment protection by using existing cabling infrastructure to support multigigabit speeds and higher throughput demands. The EX2300 Multigigabit switches are perfect for refreshing network access infrastructures or building new greenfield campus and branch deployments that require multigigabit ports on the access switch.

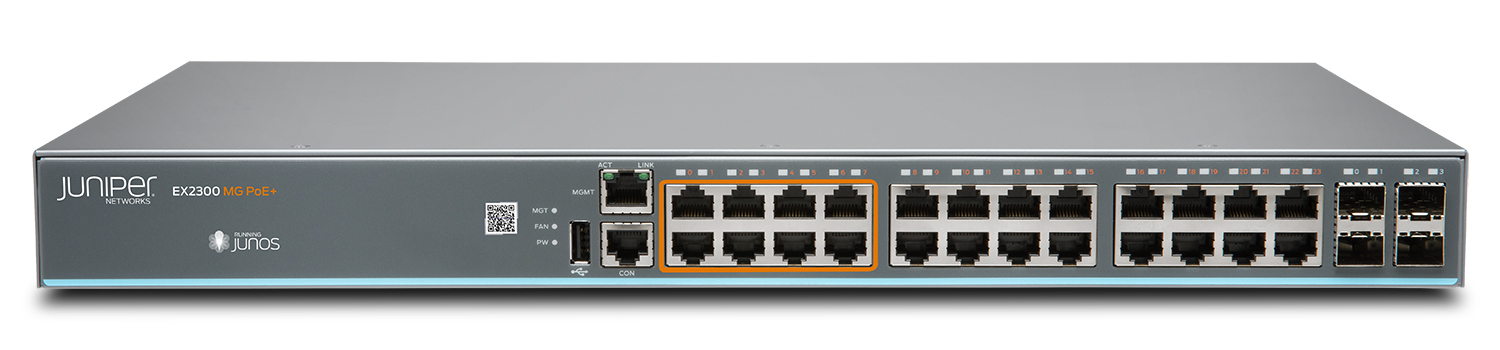

There are two EX2300 Multigigabit switch models available, offering either 24 or 48 10/100 Mbps/1GbE/2.5GbE-T ports in a single platform. Both models offer IEEE 802.3af Power over Ethernet (PoE)/802.3at PoE+ for powering attached network devices. Each switch has 10GbE small form-factor pluggable plus transceiver (SPF+ transceiver) uplink ports that support connections to other access or distribution layer switches.
EX2300 Multigigabit switches integrate with Juniper’s industry-leading Virtual Chassis technology to simplify operations by consolidating the management of up to four switches into one logical device. These switches can also form a Virtual Chassis with existing non-multigigabit EX2300 switches. Additionally, EX2300 Multigigabit switches are supported as satellite devices in a Junos Fusion Enterprise deployment, which allows large numbers of access switches to be merged into a logical management platform.
Form factor | Fixed platform
Virtual Chassis configuration (up to 4 switches) |
|---|
Access ports | EX2300-48MP: 16 x 1GbE/2.5GbE + 32 x 1GbE
EX2300-24MP: 8 x 1GbE/2.5GbE + 16 x 1GbE |
|---|
Dimensions (W x H x D) | EX2300-48MP: 17.4 x 1.75 x 14.5 in. (44.19 x 4.45 x 36.83 cm)
EX2300-24MP: 17.4 x 1.75 x 10.0 in. (44.19 x 4.45 x 25.4 cm) |
|---|
Backplane speed | 120 Gbps Virtual Chassis interconnect to link up to four EX2300-48MP switches as a single logical device
80 Gbps Virtual Chassis interconnect to link up to four EX2300-24MP switches as a single logical device |
|---|
Data rate | EX2300-48MP: 264 Gbps
EX2300-24MP: 208 Gbps |
|---|
Throughput | EX2300-48MP: 196 Mpps
EX2300-24MP: 154 Mpps |
|---|
10/100/1000BASE-T port densities | EX2300-48MP: 32
EX2300-24MP: 16 |
|---|
10GBASE-X port densities | EX2300-48MP: 6
EX2300-24MP: 4 |
|---|
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities | N/A |
|---|
100GBASE C form-factor pluggable transceiver (CFP) port densities | N/A |
|---|
Resiliency | Integrated power supply and fans |
|---|
Operating system | Junos OS |
|---|
Traffic monitoring | sFlow |
|---|
Quality-of-service (QoS) queues/port | 8 |
|---|
MAC addresses | 16,000 |
|---|
Jumbo frames | 9216 bytes |
|---|
IPv4 unicast/multicast routes | 4096 / 4096 |
|---|
IPv6 unicast/multicast routes | 2048 / 2048 |
|---|
Number of VLANs | 4093 |
|---|
ARP entries | 5000 |
|---|
Field-Proven Juniper Technology
A cloud-grade architecture, coupled with the Junos OS, enables EX Series switches to provide always-on reliability for every application.
Security risk management integrates Unified Access Control (UAC) to help EX Series switches dynamically deliver network protection, guest access, and identity-based quality of service (QoS).
Wire-speed performance at high 1GbE, 10GbE, and 40GbE port densities dramatically simplifies network topologies and operations.
Eight QoS queues per switch port ensure proper prioritization of voice, video, and multiple levels of data traffic, with room to converge other networks, such as building automation and video security systems.
Innovative, cost-effective switch design enables new architectures that reduce cost and complexity, while unified management and automation tools consolidate system monitoring.
Virtual Chassis technology allows multiple interconnected EX Series switches to operate as a single logical device, reducing operational expenses and simplifying management.
