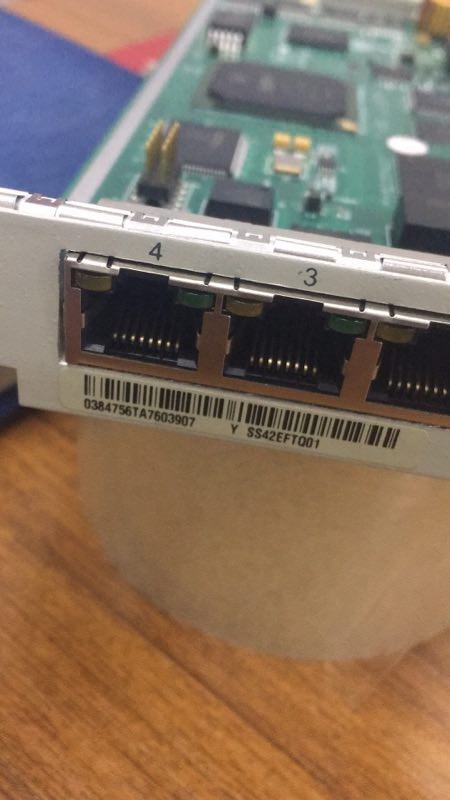

03038475 SS42EFT EFT Huawei 155 622H sdh Metro1000 4 ports 10/100M ethernet eletrical interface board

Product Categories
Uonel Co.Limtied
Contact Now

03038475 SS42EFT EFT Huawei 155 622H sdh Metro1000 4 ports 10/100M ethernet eletrical interface board

  • 1
  • 2

Model Number : SS42EFT

Place of Origin : China

Brand Name : Huawei

Type : SS42EFT

Product name : SS42EFT

Name : SS42EFT

Item : SS42EFT

Model : SS42EFT

Packaging Details : Export carton package

Port : Shenzhen

Supply Ability : 200 Piece/Pieces per Week

Price : Negotiable

Certification : CE FCC RoHS

MOQ : Negotiable

Delivery Time : 7-15 days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

03038475 155 622H sdh OptiX Metro 1000 SS42EFT Huawei EFT 4 ports 10/100M ethernet eletrical interface board

03038475 SS42EFT EFT Huawei 155 622H sdh Metro1000 4 ports 10/100M ethernet eletrical interface board03038475 SS42EFT EFT Huawei 155 622H sdh Metro1000 4 ports 10/100M ethernet eletrical interface board

The OptiX Metro 1000, a type of STM-1/STM-4/STM-16 case-shaped equipment, was developed by Huawei to enable access for multiple types of services. It can be used at the access layer of Metropolitan Area Networks (MANs) and local transmission networks to access VIP private lines, wireless base stations, and Digital Subscriber Line Access Multiplexers (DSLAMs).

Features

High Integration

  • Chassis dimensions: 442 mm (W) x 220 mm (D) x 43.6 mm (H)

Flexible MADM Design

  • Supports 21.25 Gbit/s higher order cross-connections, and 5 Gbit/s lower order cross-connections
  • Supports networking topologies including point-to-point, chain, ring, hub, and mesh, etc

Various Service Interfaces

  • SDH/PDH service
  • Ethernet service
  • ATM service
  • Audio and data service
  • DDN service
  • G.SHDSL

Smooth Evolution Capacity

  • Supports smooth evolution from STM-1 to STM-4 and to STM-16

Highly Reliable Design

  • Equipment-level: 1+1 hot backup for the power supply
  • Network-level: Linear multiplex section protection (LMSP), Ring MSP, Sub network connection protection (SNCP), Protection for inter-ring services, Fiber-shared virtual path protection

Flexible Process for DCC

  • Supports transparent transmission of the DCC bytes and management information transmission through the external clock interface to realize hybrid networking and unified network management

IEEE 1588 V2 Clock Synchronization

  • Provides high-precision time synchronization to meet power, finance, and other industry requirements
    Interface TypeDescriptionConnector Type
    Service interfaceSDH serviceSTM-1 optical interface: supports the Ie-1, S-1.1, and L-1.1 optical modules.SC/LC
    STM-1 optical interface: supports the S-1.1 and L-1.1 optical modules that use a single fiber for transmitting and receiving.SC/LC
    STM-4 optical interface: supports the Ie-4, S-4.1, and L-4.1 optical modules.SC/LC
    STM-16 optical interface: supports the S-16.1 optical modules.LC
    STM-1 electrical interfaceSMB
    PDH serviceE1/T1 electrical interface2 mm HM connector
    Framed E1 electrical interfaceDB78 connector
    E3/T3 electrical interfaceLC
    Ethernet service10BASE-T, 100BASE-TXRJ-45
    100BASE-FXLC
    1000BASE-SX/LXLC
    1000BASE-FXLC
    ATM serviceSTM-1 optical interface: 155 Mbit/sMTRJ/LC
    Audio and data serviceRS-232 or RS-422 data and audio interface2 mm HM connector
    DDN servicePhysical interface complying with multiple protocols, including V.35, V.24, X.21, RS-449, and EIA-5302 mm HM connector
    Framed E1 electrical interfaceDB78 connector
    G.SHDSL serviceSingle pair high-bit-rate digital subscriber line interfaceRJ-11
    Clock interfaceThe clock signals at the 120-ohm external clock interface can be 2048 kbit/s or 2048 kHz.RJ-45
    Power interface2x–48 V DC/–60 V DC power interfaces+1x24 V DC interface4-core socket
    Environment monitoring interfaceThe EMU board provides the following interfaces:

    • 12 housekeeping signal inputs and 6 housekeeping signal outputs

    • An RS-232/RS-422 serial communication interface

    		2 mm HM connector
    The SCB board provides the following interfaces:

    • Four housekeeping signal inputs and 2 housekeeping signal outputs

    • Four transparent data interfaces

    		RJ-45
    Management interfaceA modem interfaceRJ-45
    An NM interfaceRJ-45
    Orderwire interfaceAn orderwire phone interfaceRJ-11

Specification

SpecificationsMetro 1000
AggregationSTM-1/STM-4/STM-16
Dimensions86 mm(H)×436mm(W)×293mm(D)
Switch CapacityTDM: 21.25Gbit/s (136×136 VC4, higher order),5Gbit/s (32×32 VC4, lower order) Packet: 8Gbit/s
Service Slots5 slots for processing boards
Supported InterfaceMSTP interfacesSTM-1/4/16, E1/E3/T1/T3, FE/GE, DDN, ATM, SHDSL
PCM interfacesFramed E1, RS232/RS422, two-wire/four-wire audio interfaces
V.35/V.24/X.21/RS449/EIA-530/RS-530/RS-530A
Packet transport interfacesE1 CES, FE/GE
Power SupplyDC: -48V DC/-60V DC/+24V DC
AC: 220V/110V AC
Clock SynchronizationLine clock source
Tributary clock source
Two external clock inputs/outputs (2 MHz or 2 Mbit/s)
Auxiliary InterfaceHousekeeping signal input/output interface, RS232/RS422 serial communication interface
Modem interface, NM interface
Orderwire phone interface

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery OptionsEstimated Delivery Time
03038475 SS42EFT EFT Huawei 155 622H sdh Metro1000 4 ports 10/100M ethernet eletrical interface board 03038475 SS42EFT EFT Huawei 155 622H sdh Metro1000 4 ports 10/100M ethernet eletrical interface board03038475 SS42EFT EFT Huawei 155 622H sdh Metro1000 4 ports 10/100M ethernet eletrical interface boardDHL3-5 business days
03038475 SS42EFT EFT Huawei 155 622H sdh Metro1000 4 ports 10/100M ethernet eletrical interface board Fedex3-5 business days
03038475 SS42EFT EFT Huawei 155 622H sdh Metro1000 4 ports 10/100M ethernet eletrical interface board By Sea10-20 business days

03038475 SS42EFT EFT Huawei 155 622H sdh Metro1000 4 ports 10/100M ethernet eletrical interface boardNotice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

03038475 SS42EFT EFT Huawei 155 622H sdh Metro1000 4 ports 10/100M ethernet eletrical interface boardDeliver to port:

Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.

03038475 SS42EFT EFT Huawei 155 622H sdh Metro1000 4 ports 10/100M ethernet eletrical interface boardDeliver to door:

Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.

Warranty

03038475 SS42EFT EFT Huawei 155 622H sdh Metro1000 4 ports 10/100M ethernet eletrical interface board 100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices


03038475 SS42EFT EFT Huawei 155 622H sdh Metro1000 4 ports 10/100M ethernet eletrical interface board 100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.


03038475 SS42EFT EFT Huawei 155 622H sdh Metro1000 4 ports 10/100M ethernet eletrical interface board Free Technical Support:

Our FREE Huawei Expert Consultancy Support is over the phone, by chat, by email or by login remotely.


03038475 SS42EFT EFT Huawei 155 622H sdh Metro1000 4 ports 10/100M ethernet eletrical interface board 100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.


03038475 SS42EFT EFT Huawei 155 622H sdh Metro1000 4 ports 10/100M ethernet eletrical interface board Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Huawei product: 1 Year

The Support Contacts:

If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Company Profile

Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.

Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
