03054700 Huawei Flexible Card Multi Service Unit MSUF-51 ME0DMSUF5170

Product Categories

Uonel Co.Limtied

Contact Now

03054700 Huawei Flexible Card Multi Service Unit MSUF-51 ME0DMSUF5170

Name: 03054700 Huawei Flexible Card Multi Service Unit MSUF51 ME0DMSUF5170
Brand: Huawei
Price: 1 USD

Wholesale 03054700 Huawei Flexible Card Multi Service Unit MSUF-51 ME0DMSUF5170 from china suppliers

Place of Origin : China

Brand Name : Huawei

Model Number : ME0DMSUF5170

Supply Ability : 200 Piece/Pieces per Week

MOQ : Negotiable

Price : Negotiable

Products Status : Stock

Dimensions (H x W x D) : 40.1 mm x 399.2 mm x 535.6 mm

Typical power consumption : 180.2 W

Typical heat dissipation : 584.0 BTU/hour

Weight : 6.6 kg

Type : ME0DMSUF5170

Certification : CE FCC RoHS

Packaging Details : Export carton package

Delivery Time : 7-15 days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

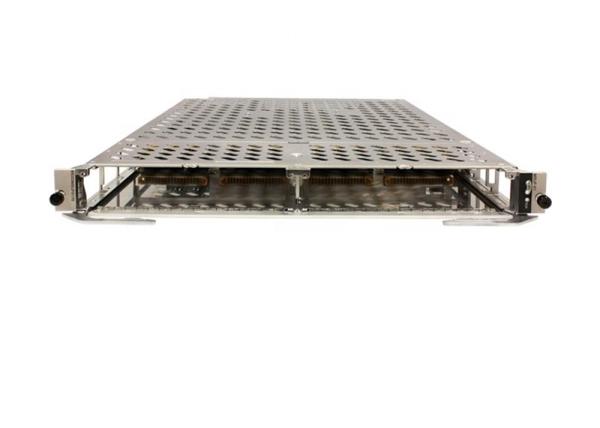

03054700 Huawei Flexible Card Multi Service Unit(MSUF-51,2 sub-slots) MSUF-51 ME0DMSUF5170

Product Overview& Appearance

Board name silkscreen: MSUF-51

Description: Flexible Card Multi Service Unit(MSUF-51,2 sub-slots)

BOM: 03054700

Model: ME0DMSUF5170

BSUF-51/MSUF-51 Flexible Line Process Card
03054629	ME0DBSUF5170	Flexible Card Broadband Service Unit(BSUF-51,2 sub-slots)
03054700	ME0DMSUF5170	Flexible Card Multi Service Unit(MSUF-51,2 sub-slots)
03031XPX	ME0D0L5XXE7E	5-Port 10GBase LAN/WAN-SFP+ Flexible Card E(BP52-E,occupy 2 sub-slot)
03030PYM	ME0D0L2XXB7H	2-Port 10GBase LAN/WAN-SFP+ Flexible Card(BP51)
03031XQF	ME0D0L2XXE7E	2-Port 10GBase LAN/WAN-SFP+ Flexible Card E(BP52-E)
03030PYJ	ME0D0EFGFB7H	24-Port 100/1000Base-X-SFP Flexible Card(BP51)
03031XQM	ME0D0EFGFE7E	24-Port 1000Base-X-SFP Flexible Card E(BP52-E)

Optical Transceiver of 10G SFP+ & 100G Optical module

10G SFP+ Optical Transceiver
S4017482	OSX040N03	Optical Transceiver(SFP+,850nm,10Gb/s,-7.3~-1dBm,-9.9dBm,LC, MM,0.3km)
S4017483	OSX001002	Optical Transceiver(SFP+,1310nm,10Gb/s,-8.2~0.5dBm,-12.6dBm,LC,SM,10km)
34061042	OSX010N13	XFP SFP+ Transceiver-SFP+-1310nm-10G/1G--8.2dbm-0.5dbm-Single-mode-14.4dbm-LC-10km
S4017484	OMXD30002	Optical Transceiver(SFP+,1550nm,9.95~11.1Gb/s,-4.7~4dBm,-14.1dBm,LC,SM,40km)
02311YEB	OSX040N14	Optical Transceiver(SFP+,1310nm,10Gb/s,-2dBm~4dBm,-20dBm,LC,SM,40km)
02310PVU	OSX080N04	Optical Transceiver(SFP+,1550nm,9.953~10.3125Gb/s,0~4dBm,-24dBm,LC,SM,80km)
34060687	OSX070002	Optical Transceiver-SFP+-1471nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km
34060688	OSX070003	Optical Transceiver-SFP+-1491nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km
34060686	OSX070001	Optical Transceiver-SFP+-1511nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km
34060689	OSX070004	Optical Transceiver-SFP+-1531nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km
34060690	OSX070005	Optical Transceiver-SFP+-1551nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km
34060691	OSX070006	Optical Transceiver-SFP+-1571nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km
34060692	OSX070007	Optical Transceiver-SFP+-1591nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km
34060693	OSX070008	Optical Transceiver-SFP+-1611nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km

100G Optical Transceiver
S4017456	OSN010N04	Optical transceiver,CFP,1295/1300/1304/1309nm,103.125Gbps,-4.3dBm,4.5dBm,-8.6dBm,LC,SMF,10km
02310WUS	OSN040N02	High Speed Transceiver,CFP,1310nm Band,103.125Gb/s,-2.9dBm,2.9dBm,-21.4dBm,Straight LC,SMF,40km,OMA OPTICAL POWER,100GBASE-ER4
02311JNT	OSN080N10	High Speed Transceiver,CFP,1310nm,103.125Gb/s,9dBm,12.5dBm,-24dBm,Straight LC,SMF G.652,80km,100GBASE
S4017457	OSN010003	Optical Transceiver,CFP,850nm,10*10.3125Gb/s,-7.6dBm,2.4dBm,-5.4dBm,mpo,MM,0.1km
02311LYG	OMND10N12	High Speed Transceiver,CFP2,850nm,10*10Gb,103.125Gb/s,-7.6dBm,1dBm,-9.5dBm,MPO,MM,0.1km
02310WUR	OSN010N09	High Speed Transceiver,CFP2,4*25Gb/s(1310nm Band),103.125Gb/s,-4.3dBm,4.5dBm,-10.6dBm,LC straight,SMF,10km
02311FAP	OSN040N03	High Speed Transceiver,CFP2,1310nm,103.125Gb/s,-2.9dBm,2.9dBm,-21.4dBm,Straight LC,SMF,40km,OMA,100GBASE-ER4
02311NTY	OMND10N13	High Speed Transceiver,QSFP28,850nm,100G,-8.4dBm,2.4dBm,-10.3dBm,MPO,MM,0.1km,OM4
02311QDH	OSN020N15	High Speed Transceiver,QSFP28,1310nm,4*25GBase,-6.5dBm,2.5dBm,-9.8dBm,LC/PC,2km (100GBASE-CWDM4)
02312BSS	OSN010N24	High Speed Transceiver,QSFP28,1310nm,100G,-4.3dBm,4.5dBm,-8.6dBm,LC,SMF,10km

Product Overview

The ME60 is a multi-service control gateway series launched by Huawei. ME60s are mainly used as broadband service access BRAS nodes and IP/MPLS network service-provisioning nodes. The ME60 uses Huawei-developed Solar series NP chips. In addition, the ME60 uses the CLOS distributed multilevel switching architecture, and leverages distributed hardware-based forwarding and non-blocking switching to achieve excellent line-speed forwarding performance, superb scalability, comprehensive QoS, and strong service processing capabilities. Based on an industry-leading 2 Tbit/s platform, the ME60 is compatible with the line cards already installed on existing networks, which helps to maximize the protection of customer investment. The ME60 is a high-performance service management and provisioning platform, which fully meets the requirements of a variety of service-provisioning modes, carries multiple services simultaneously, and ensures that a wide range of telecommunication services run stably and reliably. By using the ME60 and corresponding solutions, operators can construct a future-oriented intelligent broadband IP network with greatly reduced multi-service network construction and O&M costs.

Product features

The ME60 has the following table Specifications:

Attribute	ME60-X16A	ME60-X8A	ME60-X16	ME60-X8	ME60-X3
Switching Capacity	50.32 Tbit/s	25.16 Tbit/s	12.58 Tbit/s	7.08 Tbit/s	1.08 Tbit/s
Forwarding Performance	11,520 Mpps	5,760 Mpps	5,760 Mpps	2,880 Mpps	360 Mpps
Number of Slots	22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs	12 slots, including 8 LPUs, 2 SRUs, and 2 SFUs	22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs	11 slots, including 8 LPUs, 2 SRUs, and 1 SFU	5 slots, including 3 LPUs and 2 SRUs
Dimensions (H x W x D)	1,778 mm x 442 mm x 650 mm (40U)	934 mm x 442 mm x 650 mm (21U)	1,420 mm x 442 mm x 650 mm (32U)	620 mm x 442 mm x 650 mm (14U)	175 mm x 442 mm x 650 mm (DC 4U); 220 mm x 442 mm x 650 mm (AC 5U)
Maximum Power Consumption	7,220W (BSUF-240) 9,040W (BSUF-480)	4,110W (BSUF-240) 4,770W (BSUF-480)	4,610W (BSUF-100) 6,210W (BSUF-240)	2,340W (BSUF-100) 3,220W (BSUF-240)	920W (BSUF-100)
Full Configuration Weight	356 kg	190 kg	279 kg	136 kg	DC: 42 kg (100G) AC: 52 kg (100G)
Interface Types	100 GE-WAN/LAN 10 GE-WAN/LAN GE/FE
BRAS	User access protocols: PPPoE, IPoE, 802.1X, and ND access User authentication protocols: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS User billing protocols: RADIUS, HWTACACS, and COPS User authorization protocols: RADIUS, HWTACACS, and COPS Policy protocols: COPS, COA
L2TP	Maximum number of sessions supported: 64K per slot and 128K per device Maximum number of tunnels supported: 16K per slot, 16K per LAC device, and 48K per LNS device
IPv4	Supports the static routing protocol and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP-4. All ports support line-rate forwarding even in complex routing environments, for example, when route flapping occurs
IPv6	Supports the following: IPv4/IPv6 dual stacks A variety of IPv4-to-IPv6 transition technologies: Manually configured tunnels, IPv6 over IPv4 tunnels, GRE tunnels, IPv4 over IPv6 tunnels, and IPv6 Provider Edge (6PE) IPv6 static routes and dynamic routing protocols, such as BGP4/BGP4+, RIPng, OSPFv3, and IS-ISv6 IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, static IPv6 DNS, IPv6 DNS server, TFTP IPv6 client, and IPv6 policy-based routing Network Address Translation IPv6-to-IPv4 (NAT64), NAT44 and Dual-Stack Lite (DS-Lite) Internet Control Message Protocol Version 6 (ICMPv6) Management Information Base (MIB), User Datagram Protocol Version 6 (UDP6) MIB, TCP6 MIB, and IPv6 MIB
MPLS/MPLS VPN	Supports the following: MPLS TE and MPLS/BGP VPN in compliance with RFC 2547bis Inter-AS Option A, inter-AS Option B, and inter-AS Option C Integration with Internet services Martini MPLS L2VPN and Kompella MPLS L2VPN VPLS and VLL Heterogeneous interworking Multicast VPN
